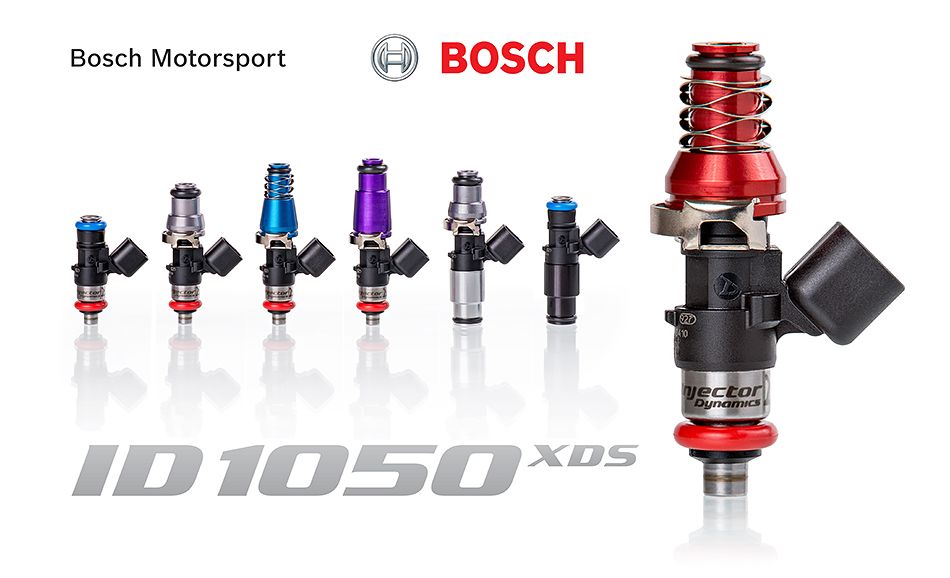

ID1050-XDS Motorsport Injector for Ethanol

The ID1050xds is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300xds, and ID1700x. Like the ID1300xds and ID1700xds, the ID1050xds is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050xds offers numerous improvements, and is sure to become the new reference.

Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors. Improved internal flow path increases output by 5% without sacrificing low flow performance.Stronger magnetic circuit offers stable operation up to 10 bar. Replaceable inlet filter extends service life.

Basic Specifications

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)

Fuel Compatibility – Compatible With All Known Fuels

Electrical Connector – USCAR

Please note that this is a tuning part intended for Motorsport use. The customer and the installer are responsible for any damage that may result from the installation and changes to the engine. Due to the nature of the tuning part, use only at your own risk. North Performance or Injector Dynamics cannot be held responsible for damages caused by incorrect adjustments or installations.
